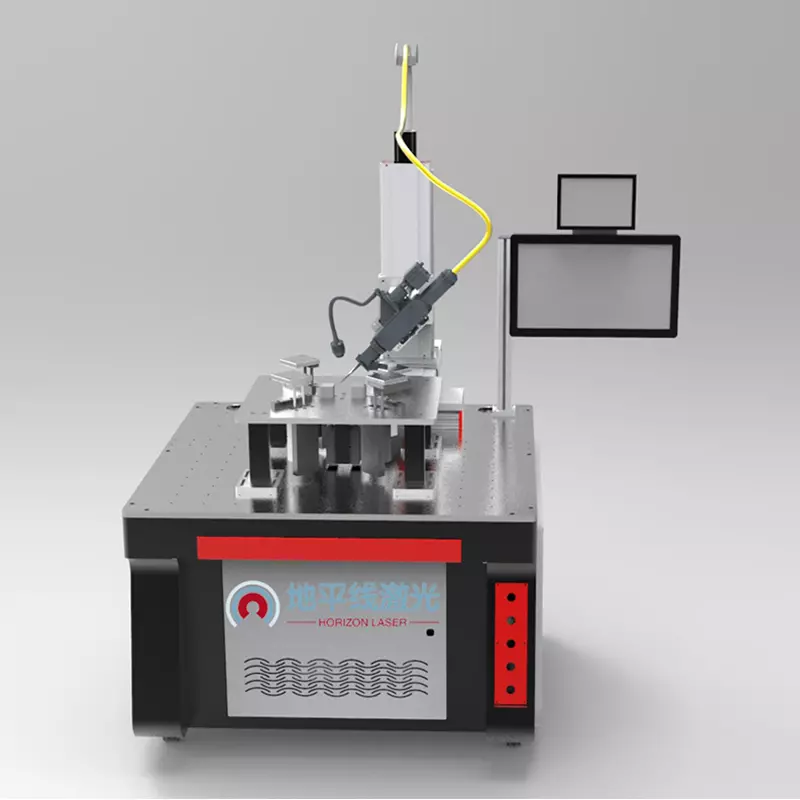

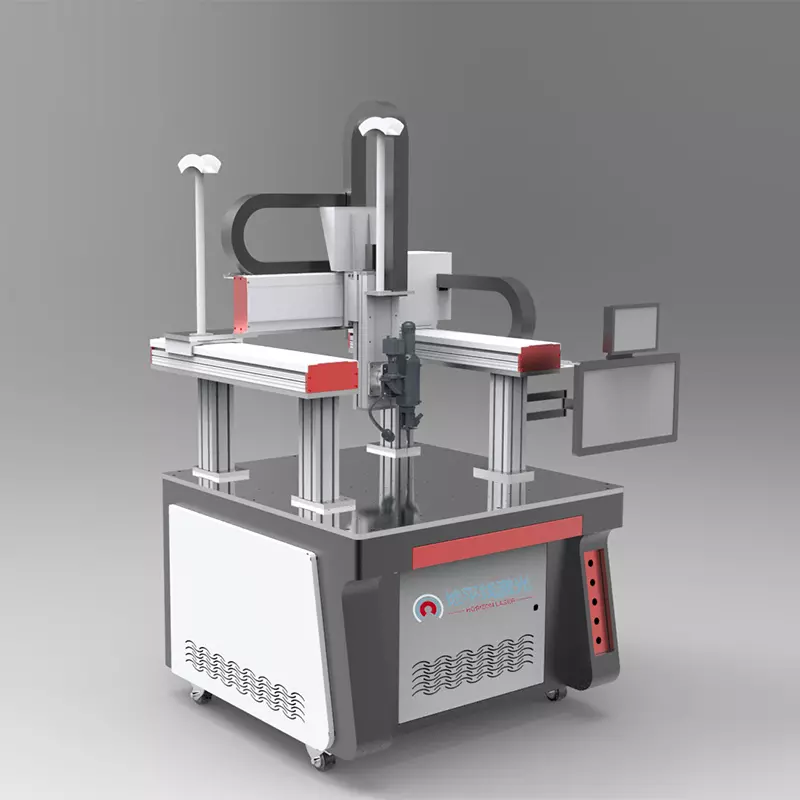

Four-axis platform welding machine
Four-axis platform welding machine

Multi-axis laser welding machine

MOQ: 1 Pieces
Delivery time: 15 Day
Servo motor is matched with reducer to realize high-speed and large-torque movement; Simultaneous multi-axis linkage to achieve a processing track similar to that of a manipulator; The matching material tray can realize large-scale and batch one-time welding; the open IO handshake interface can be processed with automated production lines.
Product Details

Multi-axis laser welding machine controls the movement of the welding head through multiple motion axes, realizes multi-track welding of complex products, and is suitable for application scenarios with high welding precision and batch product processing. It is widely used in lithium battery industry, 3C industry, kitchen and bathroom industry.



Technical Parameters

Laser

CW fiber laser, QCW laser

Laser power

1000-6000W

Motion axis

4- axis ( 3- axis, 5- axis, 6- axis optional), rotation axis

Welding head

Conventional welding head, swing welding head (weld seam 0.2 5 mm )

Welding mode

Continuous welding (sealed welding, stitch welding, tailor welding, fillet welding), spot welding

Processing range

Length, width and height: 200-900mm (larger size can be customized)

Drive method

Servo motor (linear motor optional)

Repeatability

± 0.03mm

Other optional configuration

Double station, CCD positioning, conveyor belt loading and unloading machine, wire feeding mechanism



Features

Servo motor is matched with reducer to realize high-speed and large-torque movement;

Simultaneous multi-axis linkage to achieve a processing track similar to that of a manipulator;

The matching material tray can realize large-scale and batch one-time welding; the open IO handshake interface can be processed with automated production lines.

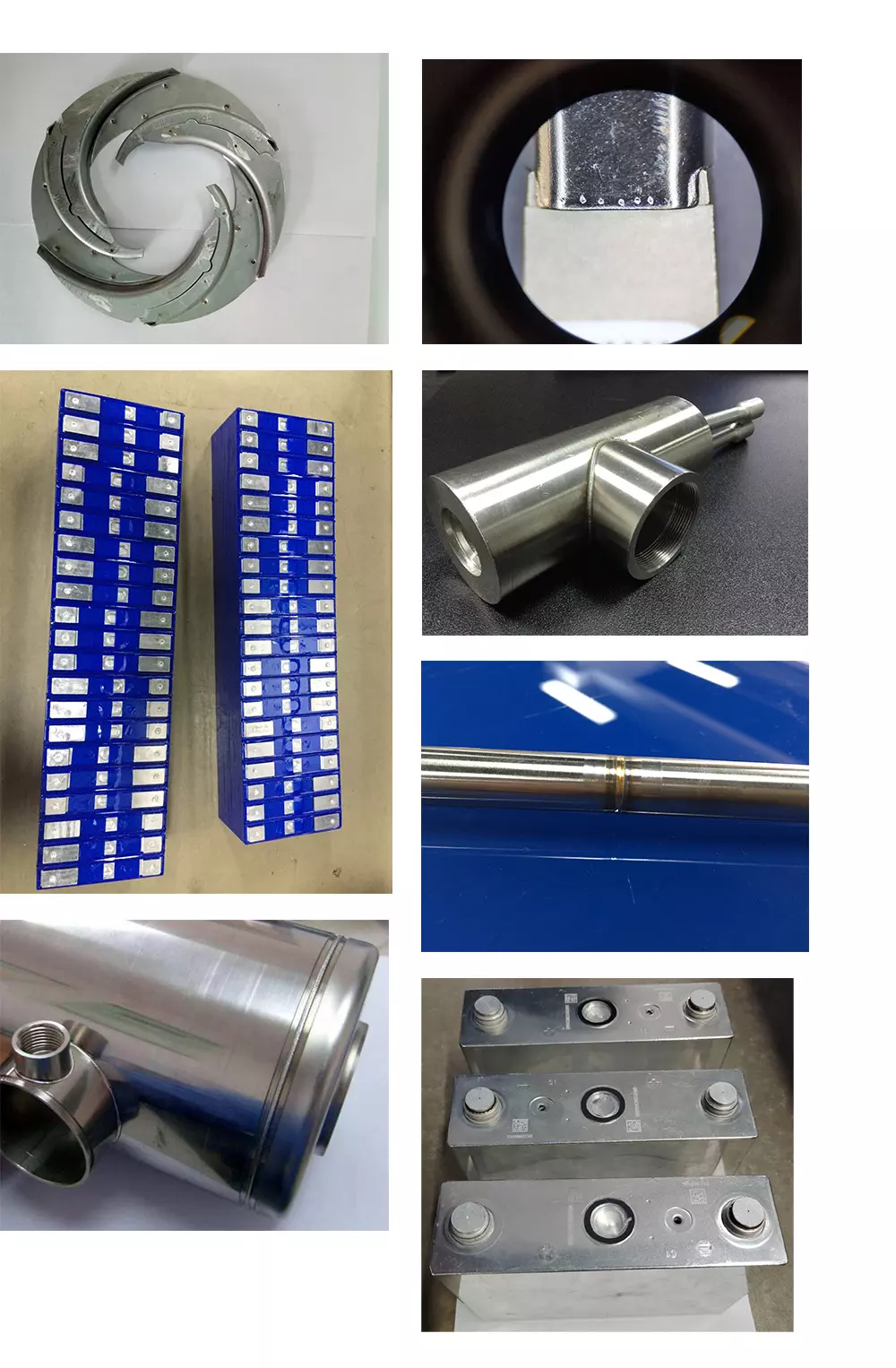

Apply effects
